Omega guitars are sent fully assembled.
Current production lead times are shown at checkout.
Every guitar is built in the Pearson Rotorua workshop from imported hardware and necks.
Setup: Action will be setup no higher than 1.5mm on the high and low E at the 12th fret with zero buzz.
Quick features:
– Only 2.7 KG
– String lock: Gotoh GHL-2 11/16 Floyd Rose Locking Nut
– 24 Stainless Steel Frets
Full spec list:

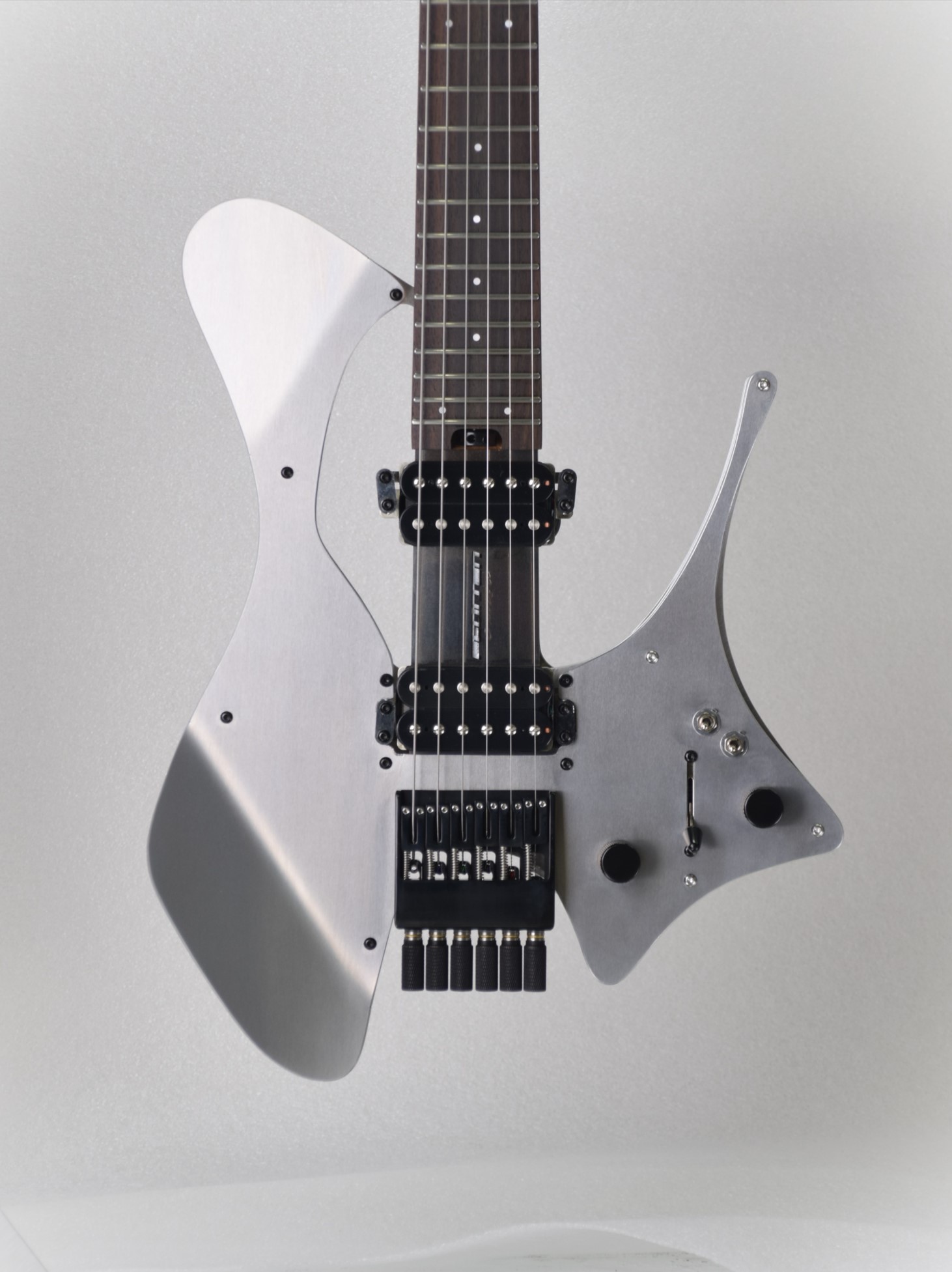

Model: Pearson Omega 6
Weight: 2.7KG
Body Shape: Omega
Frame Material: 2mm 5052 Aluminum and 2mm 304 Stainless Steel
Neck Specs:
Neck Wood: Roasted Maple
Fingerboard Material: Rosewood
Frets: Stainless Steel Medium Jumbo (Rounded hemispherical fret ends)
Fingerboard Radius: 12 Inch
Neck Profile: Modern C
Neck Thickness at 1st Fret: 21.5mm
Neck Thickness at 12th Fret: 23mm
Fret Count: 24
Scale Length: 647.7mm (25.5 Inch)
Nut Material: Bone
Nut Width: 42 mm
Inlays: Small silver dots
Side markers: White
Hardware Specs:
String lock: Gotoh GHL-2 11/16 Floyd Rose Locking Nut
Controls: 1 Volume, 1 Tone, 3 Way Blade Switch
Hardware: Black
Bridge: Pearson Custom Fixed Headless Bridge
Truss Rod: Double action spoke wheel at heel
Control Knobs: Chrome Dome
Strap Buttons: Black Mushroom
Mounting Bolts: M3 Stainless Steel Hex – Cup head
Neck Screw Bolts: M5 Stainless Steel Head
Electronic Specs:
Neck Pickup: Pearson A2 Vintage Output (Alnico 2 7.0k Humbucker)
Bridge Pickup: Pearson A2 Vintage Output (Alnico 2 8.1k Humbucker)
Pots: A500K Full Size Metric Alpha Pots (Made In Korea)
Tone Capacitor: 0.22 UF
Coil Split: N/A
Pickup Selector: Import 3 Way Blade Switch
Output Jack: 1/4 Inch Stereo
Info For modding:
Pickup Screw Distance: Import Spec 77mm
Pickup Pole Spacing: Import Spec
Volume/Tone Pot Shaft Diameter: 8mm
Pot Shaft Type: Import Spec 6mm Course Spline
Pickup thread type: M3
FAQ’s
How are the pickups attached?
We’re using stainless steel hex standoffs with stainless steel mounting tabs. A short M3 stainless steel hex bolt holds down each of the mounting tabs to secure the pickups in place. This system allows for incredibly easy pickup swapping and adjustments compared to conventional direct mount or pickup ring alternatives. If pickup swapping with imperial spec pickups is desired, any other screw size will also be compatible with the mounting system, as well as long length pickup screws as the frame has hole cutouts for this.
How are adjustments made?
The pickup heights and control covers are adjusted/accessed with the included M3 Allen wrench. We use hex instead of Phillips head as these won’t strip as easy, and as we’re using stainless steel fasteners as they won’t corrode over time.
The truss rod is adjusted with the included rod at the heel. The guitars are setup with 10s prior to sending. Tweaks to the truss rod bow may be required depending on the climate and string gauge you’re using.
